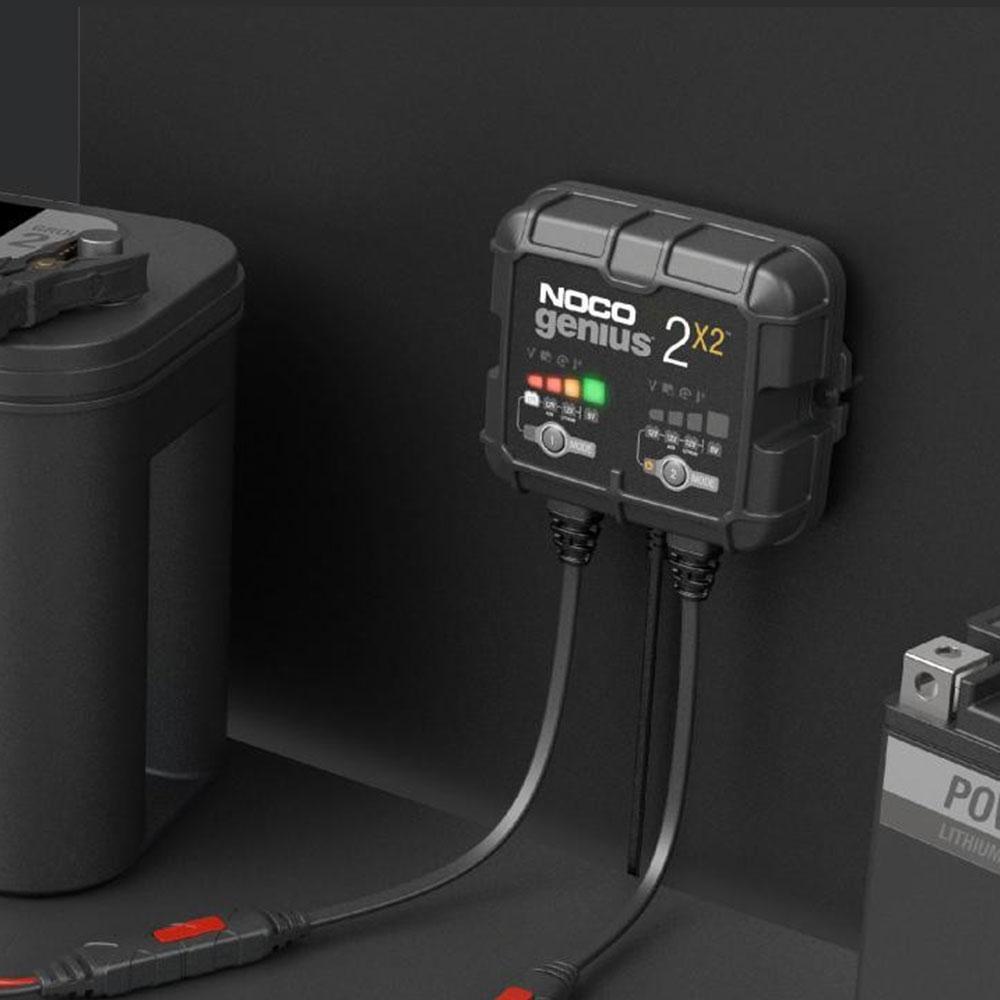

NOCO GENIUS 2X2 6V/12V 2-BANK 4A BATTERY CHARGER

2-BANK 4-AMP BATTERY CHARGER | Battery Maintainer + Battery Desulfator

Introducing the all-new GENIUS2X2, one of Noco's most powerful, highest-performing, energy-efficient, and compact chargers yet. The GENIUS2X2 is a 6-volt and 12-volt two-bank battery charger, battery maintainer, trickle charger, and battery desulfator. It's rated at 4-amps (2-amps per bank) for all types of lead-acid and lithium-ion batteries, including flooded, gel, and AGM, as well as marine and deep-cycle batteries.

Powerful, Efficient, and Compact.
THE NEXT GENERATION.
Compact, yet powerful battery charger. A mix of electrical engineering and industrial design pack a powerful battery charger into a tiny footprint. The GENIUS2X2 uses high-frequency switch-mode technology to efficiently convert A/C power into safe D/C power for battery charging. And its onboard microcomputer precisely controls the charging to minimise power loss to create an incredibly compact form factor.

Multi-Voltage. Multi-Chemistry. Multi-Battery Type.
DO MORE WITH ONE CHARGER.
A multi-functional design that allows you to charge in more ways. Effortlessly charge multiple battery voltages (6-Volt and 12-volt lead-acid and lithium-ion batteries) chemistries (Flooded, gel, maintenance-free and AGM batteries) and types (Starter, deep-cycle, marine, powersport and more).

Improved Start Voltage Sensor. All-New Force Mode.
CHARGE DEAD BATTERIES.
The all-new start-voltage sensor allows the GENIUS to detect and charge dead batteries as low as 1-volt. For extremely dead batteries lower than 1-volt, manually turn on force mode to detect and charge batteries all the way down to zero volts.

THERMAL COMPENSATION.
More Precise Charging in Any Climate.
The new integrated thermal sensor automatically monitors and adjusts the charging cycle based on fluctuations of ambient temperature, limiting the chance of under-charging or over-charging, providing a more accurate and fully charged battery. Avoids under-charging in cold weather down to -20°C and avoids over-charging in hot weather up to 40°C.

BRING BATTERIES BACK TO LIFE.
The GENIUS2X2 automatically detects sulfation/acid stratification. If any is found, the GENIUS2X2 will automatically repair and reverse the damage done to the battery, extending the usable life and increasing the performance.

Year-Round Charging. Zero Overcharge. Auto Memory.
COMPLETELY AUTOMATIC.
Finally a charger from start to finish that’s completely automatic. No special modes, no technical knowledge required. Genius will safely charge any battery. Detect damaged batteries and intuitively repair them. And actively monitor for long-term battery maintenance and extend battery life. This system allows for continuous operation without user intervention, and zero risk of overcharging your battery.

Improved Clamping Range. Improved Clamping Force.
REDESIGNED CLAMPS.
Genius clamps are built with needle-nose profiles for smaller terminal applications and detachable integrated eyelets for permanent mounting the accessory to battery. Designed to fit battery terminals of any shape and size. Engineered for improved clamping range, clamping force, and higher conductivity.

What's In The Box

• GENIUS2X2 Battery Charger w/ (2) Interchangeable Connectors
• (2) Clamps w/ Integrated Eyelets
• (2) 10’ Extension Cords
• (2) Self-Tapping Screws
• Type A, C, G, and I Power Cables
• User Guide & Warranty Information

Operating Requirements

• Line Voltage: 120V to 240V AC
• Frequency: 50Hz to 60Hz
• Operating Temperature: -4° to 104°F(-20° to 40°C)
• Storage Temperature: -22° to 140°F(-30° to 60°C)
• Relative Humidity: 0 to 95% Non-Condensing

Charging:

• Current: 2 Amps DC x 2 Banks

• Voltages:
  • 6 Volts

  • 12 Volts
• Chemistry: Lead-Acid and Lithium Types:
  • AGM
  • CA
  • EFB
  • Gel
  • Lithium
  • MF
  • Wet
  • Capacity Range: Up to 40 Amp-Hours
  • Maintenance: All Battery Sizes

Power: Consumption: 30 Watts (Max) x 2 Banks

Safety:

• Short-Circuit: Yes
• Open-Circuit: Yes
• Overheating: Yes
• Overcharge: Yes
• Spark-Proof: Yes
• Reverse Polarity: Yes

Product Size:

• Height: 4.49in (114mm)
• Width: 5.2in (132mm)
• Depth: 1.89in (48mm)
• Weight: 1.1lb (0.5kg)

Cable Management:

• DC Cable + Clamp Length: 34in (86.4cm)
• DC Cable Size: 18 AWG AWG
• DC Fuse Size: 4 Amp Mini Blade Fuse AMP MINI ® Blade Fuse
• AC Cable Length: 75in (190cm)
• AC Cable Size: 18 AWG
• Oil, gas, grease, water, chemical, UV, abrasion resistant

IP Rating: IP60
Limited Warranty: 3-Year Limited Warranty

VIEW DATA SHEET
