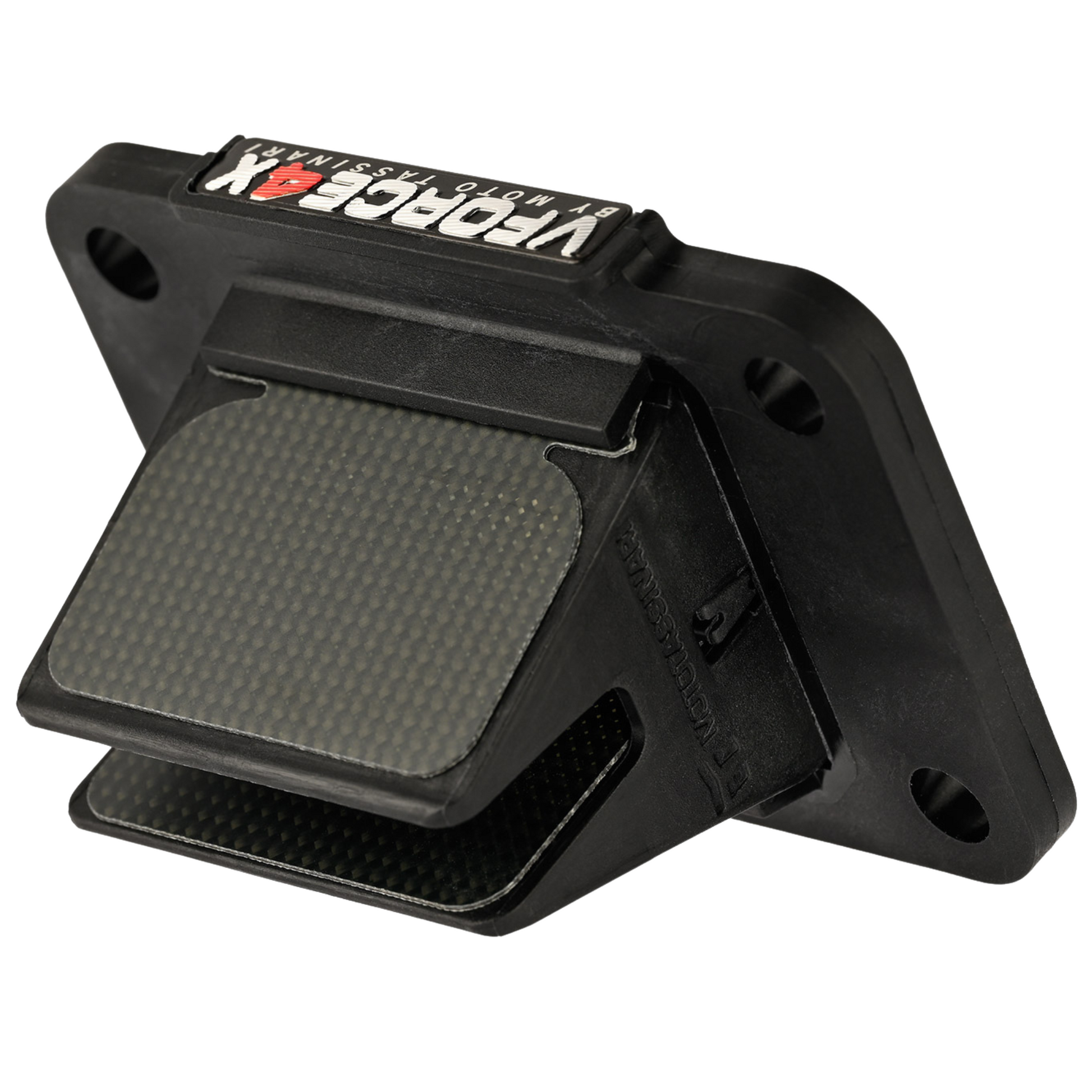

The all-new VFORCE4X V4X55 reed valve for all current GASGAS, Husqvarna and KTM 50cc and 65cc motocross models boost the horsepower throughout the mid to top and provides even more over rev than the already top performing VFORCE3, thanks to a new reed cage, air guide and reed petal combination.
The VForce reed valve system by Moto Tassinari has been the reed valve system of choice by anyone serious about two-stroke engine performance for the last 25+ years. The simple premise of the VForce reed valve system is to increase engine power and throttle response by increasing the efficiency over a conventional reed valve design by doubling the reed-tip surface.
The unique design of the VForce reed valve system features double the reed tip surface over a conventional reed valve design. This has two major benefits:
- The reed petals only travel half the distance as a conventional reed valve design to get the same airflow.
- Because the reed petals only need to travel half the distance of that on a conventional reed valve design, there is a greater chance of them being fully opened as well as a better chance of sealing when they are "closed".
A reed petal never truly "closes" in a classic sense, as it is always in movement. Consider this, an engine operating at 8,000 RPM results in a reed petal opening and closing 133 times in one second. This fact, sheds light on another VForce advantage. Since the petals are only traveling half the distance, they generally last longer as they receive less wear than the reed petals on a conventional reed valve design.
STANDARD VFORCE REED VALVE FEATURES
- Double the reed tip surface over a conventional reed valve design
- Increased bottom end, stronger mid-range and longer top-end
- Greater efficiency due to reduced reed petal travel
- More airflow means more horsepower
- Reduced reed petal wear
- Screw free design eliminates risk of screws going through motor
- Screw free design enables super quick reed petal changes
IMPROVED VFORCE4 FEATURES
- All-new reed petal resin system, carbon fibre and lay-up
- Pre-curved reed petal ensures better seal at tip
- Wider reed cage for maximum airflow
- Combined reed tip area resulting in increased total air flow
- Airfoil shape added to cage tip to increase air velocity from outer ports
- Long reed stops added to progressively slow petal tip velocity, for increased petal durability
- Reduced frontal area of central wing combined with a more aerodynamic shape
