LUXON YAMAHA YZ250 02-26 YZ250X 16-26 RUBBER ISOLATED ENGINE MOUNTS

Luxon unique rubber mounted engine hangers allow for a small amount of movement for reduced vibration and significantly more comfort without sacrificing strength or precision handling.

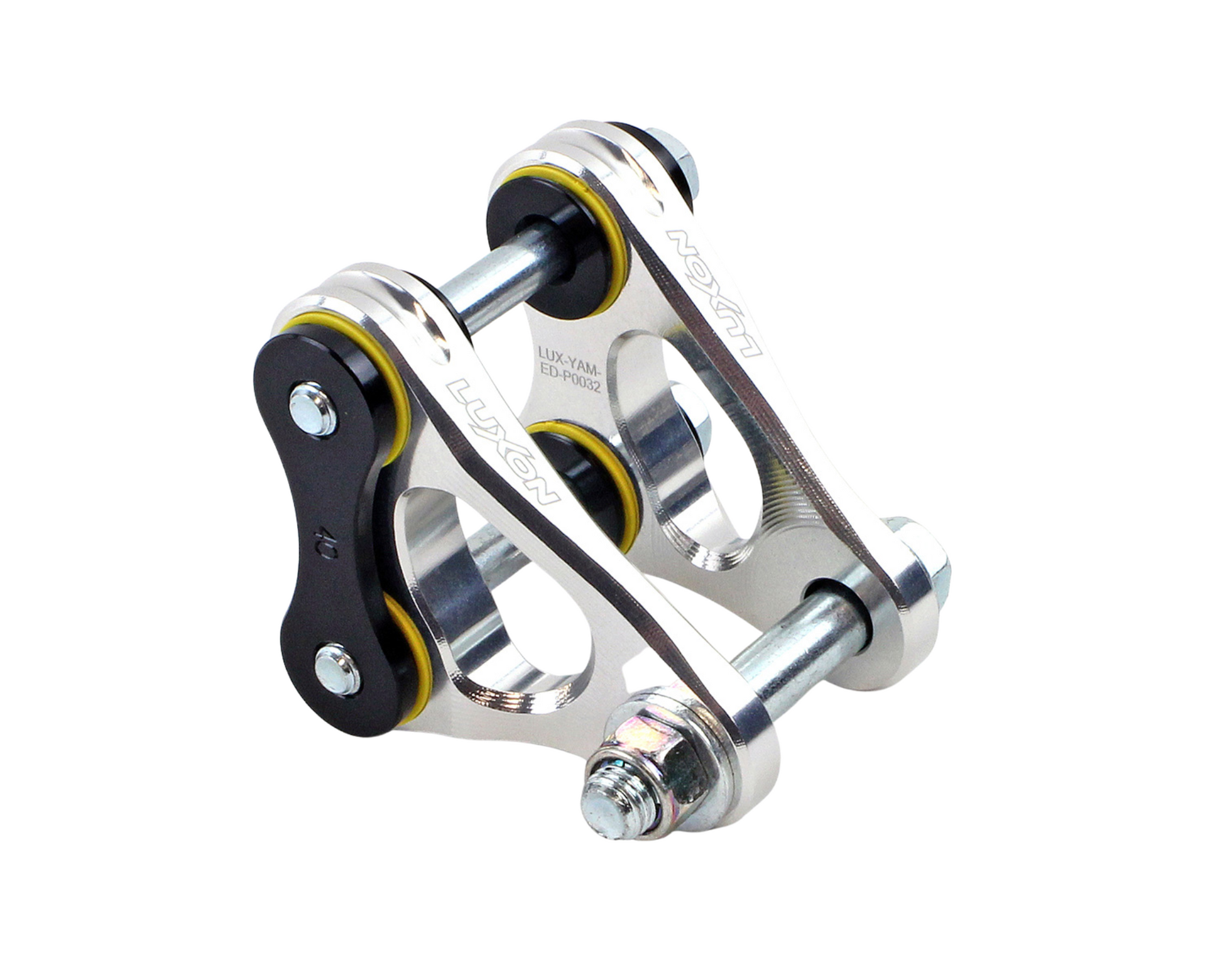

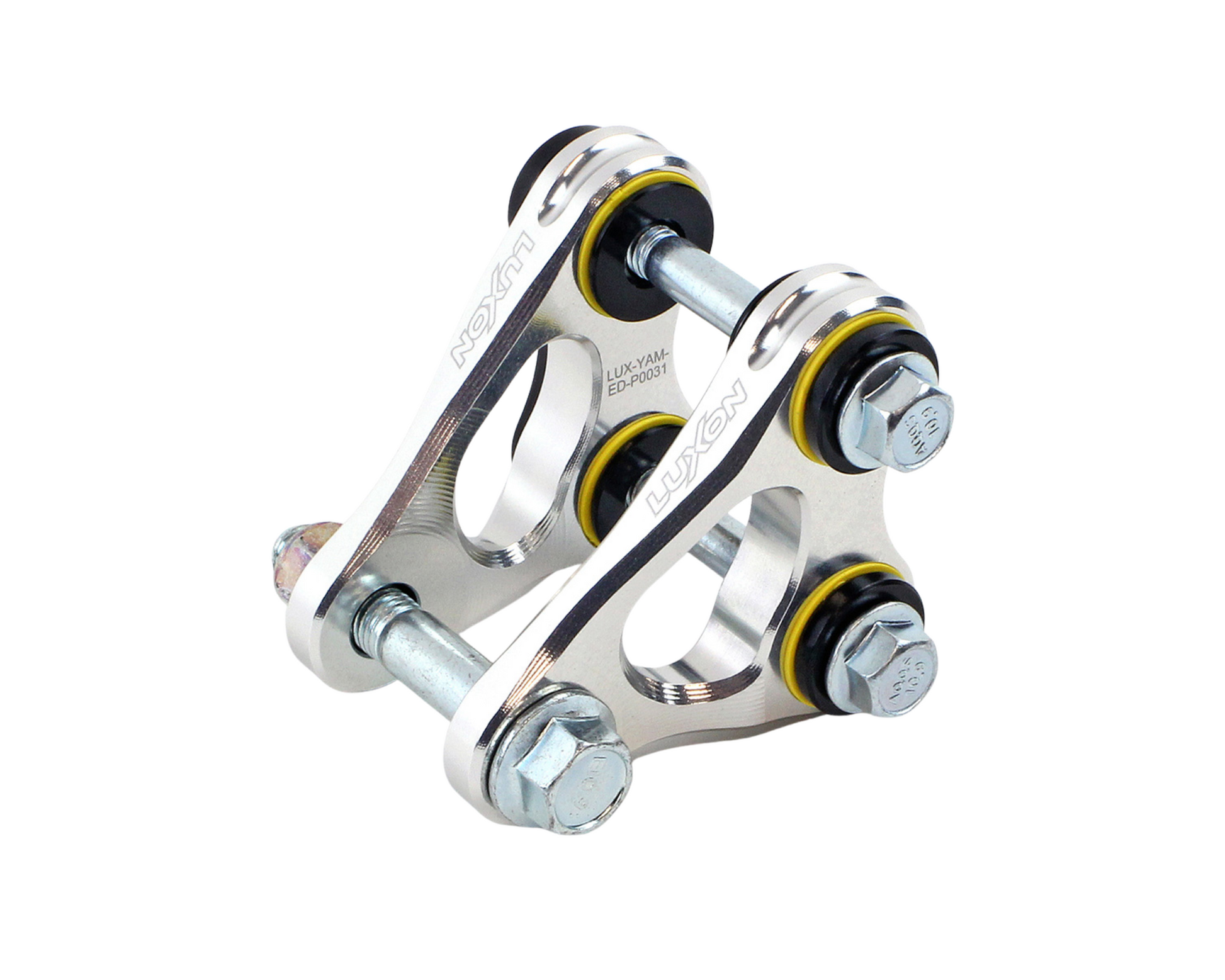

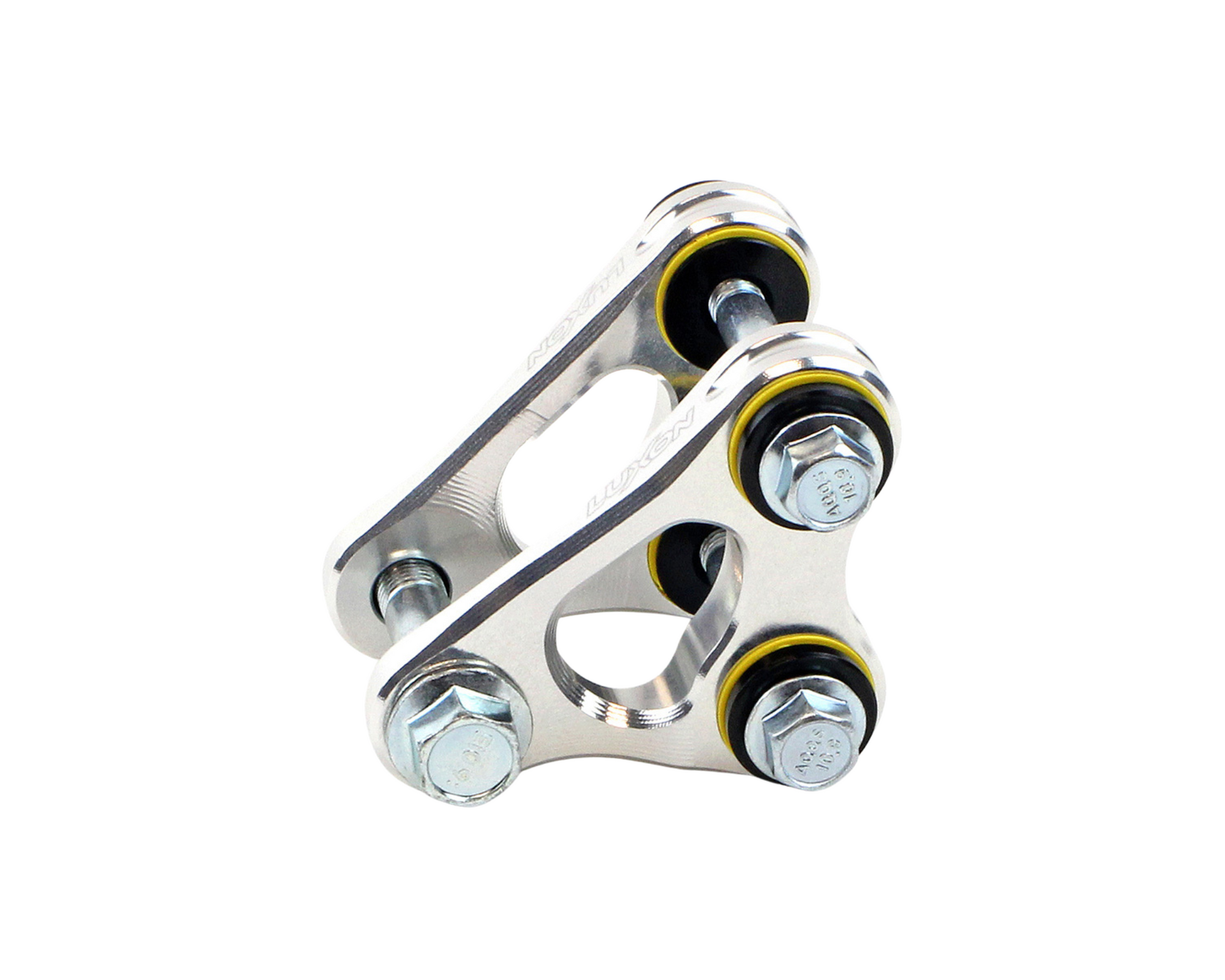

This unique design isolates the upper engine mount from the chassis with rubber bushings, which allows the upper frame spar to flex more than it would with a solid engine hanger for increased comfort and reduced vibration. The flex and feel is adjustable by changing the rubber bushing hardness with the two included bushing sets.

Luxon's advanced engineering, combined with on-track testing by top professionals, allows them to develop the most advanced engine mounts available. Luxon CNC machine these mounts in-house, from USA made material, which enables them to offer them at a more affordable price than the competition without sacrificing performance or quality.

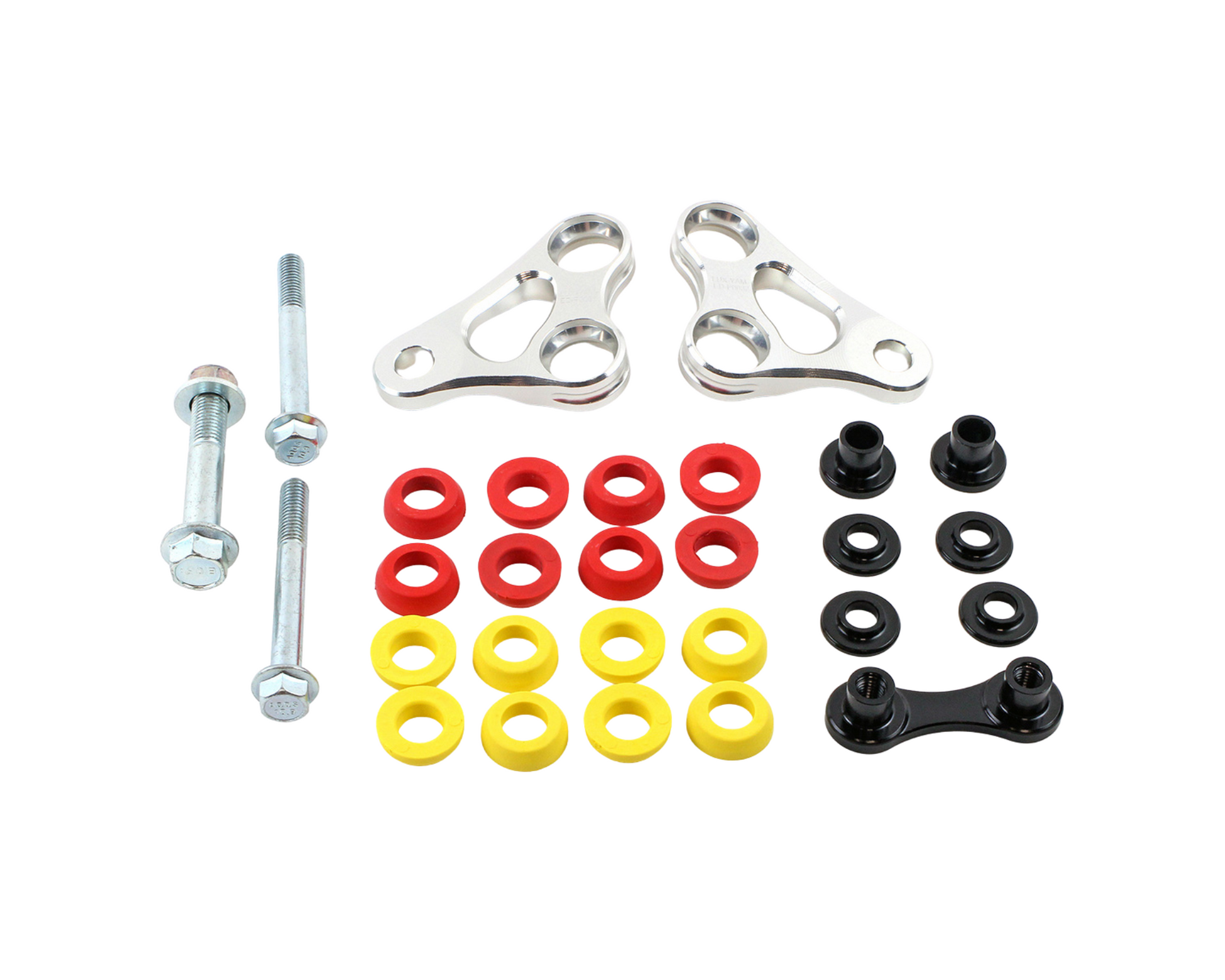

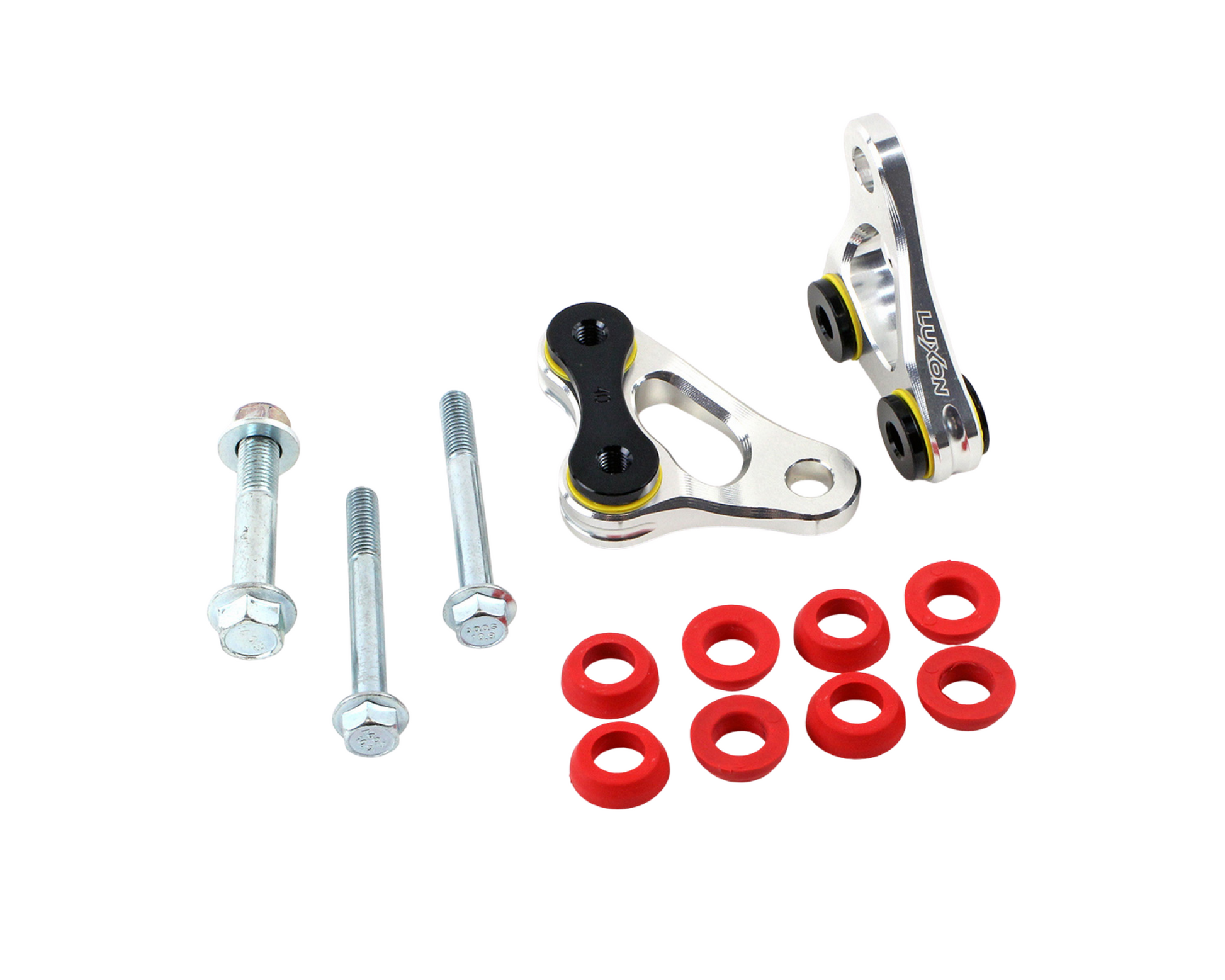

This kit includes two precision machined 7075-T6 aluminium brackets, high strength steel hardware and two different bushing sets; the upper hangers are rubber isolated. Clear anodised for a "raw" aluminium look.

WEIGHT: 260 g, 0.57 lbs
STOCK WEIGHT (2026 YZ250): 183 g, 0.40 lbs

Bolts are included for the engine hangers. Luxon recommend high quality aftermarket titanium hardware (available from Racetech, Mettec, etc.) if you want to save some weight over the included steel bolts.

VIEW INSTALLATION INSTRUCTIONS

YAMAHA

• YZ250 2002-2026
  • 2002-2004 (Steel Frame)
  • 2005-2026 (Aluminium Frame)
• YZ250X 2016-2026
