LUXON NEXUS CONE INTERFACE BAR MOUNTS SUZUKI RMZ450 05-26 RMZ250 07-26

Nexus is the ultimate, comfort oriented, high-performance bar mount. These mounts fully isolate the handlebar from the triple clamp with highly developed elastomer sets, absorbing roughness and vibration from the track or trail, without a loss of steering precision, and eliminating twisting in small crashes and tip-overs.

This mount is a must for off-road and enduro, but also works great for motocross, vet riders, and riders with hand and wrist injuries. The unique, patent pending design, is much lighter, more versatile, simpler, and less expensive than competing products. Three bushing sets (soft, medium, and firm) are included to tune the feel.

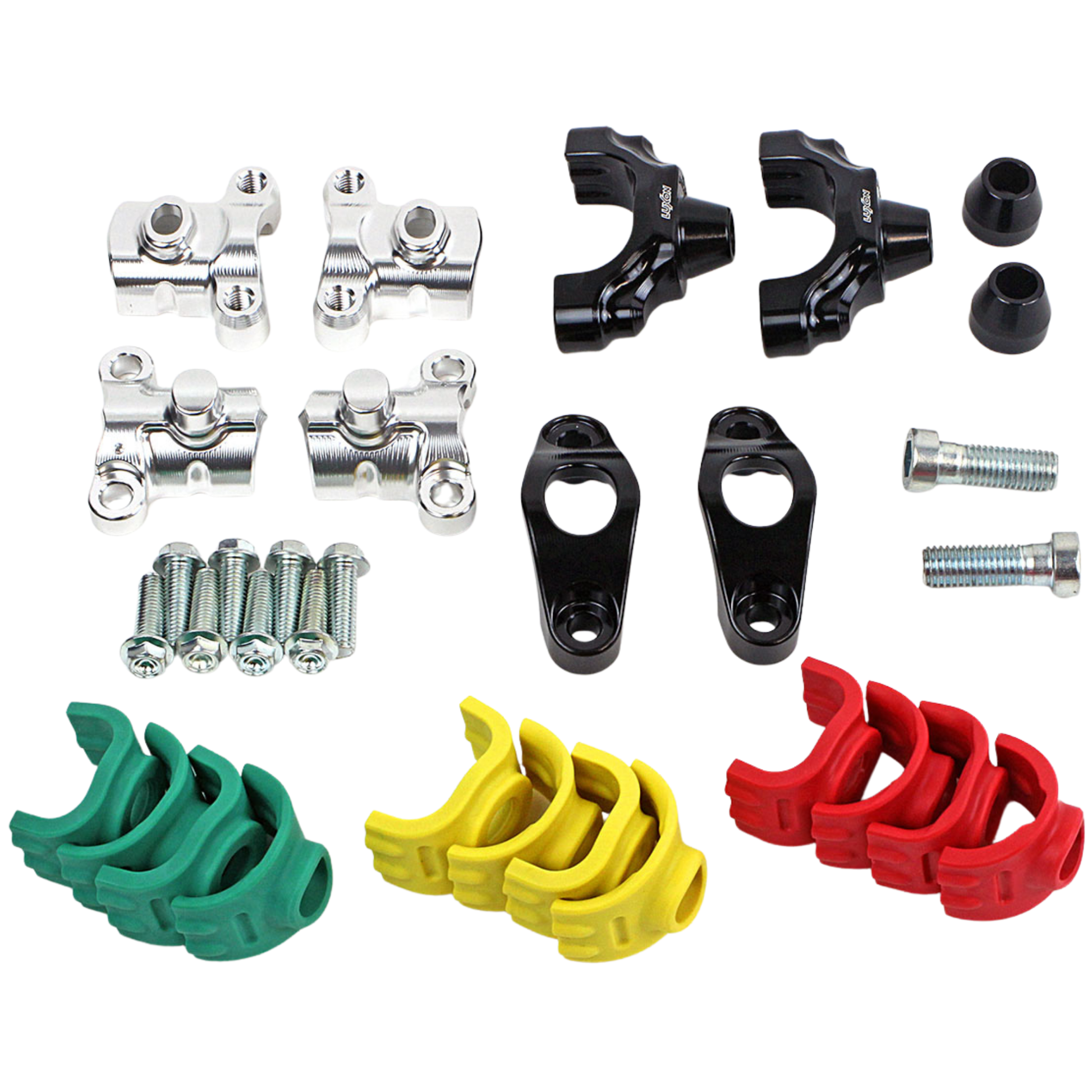

Kit Includes:

• Rubber bushings
• Bar clamps
• Bases
• Caps
• High-strength steel mount and pinch bolts
• Cones
• Anti-seize
• Instruction manual.

Luxon patent pending Nexus bar mounts are 25% lighter and nearly 20% less expensive than the comparable XC Gear Mako360 bar mount, but have increased steering precision and mounting versatility. When compared to a Flexx handlebar setup, the Nexus bar mounts save nearly two pounds (832 g) at 11% lower cost (solid bar mounts with Flexx bars vs. Nexus bar mounts with Pro Taper Evo bars).

Three different hardness levels of bushings are included at no additional cost. Bushing hardness is a compromise between comfort (soft) and steering precision (firm). Like all rubber bushings, these are wear items and will eventually break down and need replacing. Softer bushings will need to be replaced more often than harder bushings and are more susceptible to crash damage. Replacement bushings are available here.

BAR SIZE:

The Nexus bar mounts fit standard 1 1/8" handlebars only (the most common size). Sorry, Luxon do not offer the Nexus bar mounts in the FB36 (36 mm) size or the older 7/8" bar size.

BAR POSITION:

Nexus mounts are the stock Suzuki height of 30mm (bottom of bar to top of triple clamp) and offset (5mm of bar position change when flipping the mounts around).

WEIGHT 576 g, 1.27 lbs
STOCK WEIGHT (2026 MODEL) 486 g, 1.07 lbs

SUZUKI

• RM-Z250 2007-2026
• RM-Z450 2005-2026

These mounts fit stock Suzuki triple clamps with the rubber cone interface, which includes many Suzuki motocross and off-road models. Luxon mounts fit most bikes without issue, but in some cases, you may need to trim plastic brackets or relocate hour meters or accessories to allow clearance in the extreme mounting positions. Always check for full clearance after installation and before riding.

Most standard bar pads will fit with some trimming around the bar mount area. A Dremel tool with a sanding drum makes this easy, but a razor blade can be used as well.

An alignment tool is available here to ease installation and ensure correct alignment of the bar mount bases in the triple clamp. This tool is NOT required for installation, but makes the process a little easier and foolproof.

The Suzuki Cone interface is a tapered cone shaped hole on the top and bottom of the triple clamp (a cross section would look like an hour glass).

Image Above: The Suzuki Cone interface on a stock clamp
