LUXON NEXUS CONE INTERFACE BAR MOUNTS KTM SX/SX-F/XC/XC-F 16-27 EXC/EXC-F 24-26 / HUSQVARNA FC/FX/TC/TX 16-27 FE/TE 24-26 / GASGAS MC/EC/EX 24-27 / TRIUMPH TF 24-27 / STARK VARG 23-27

Name: LUXON NEXUS CONE INTERFACE BAR MOUNTS KTM SX/SX-F/XC/XC-F 16-27 EXC/EXC-F 24-26 / HUSQVARNA FC/FX/TC/TX 16-27 FE/TE 24-26 / GASGAS MC/EC/EX 24-27 / TRIUMPH TF 24-27 / STARK VARG 23-27
Brand: LUXON
SKU: LUX-KTM-SS-A0050
Price: 599.95 AUD
Availability: InStock

NEW

SKU:LUX-KTM-SS-A0050

$599.95 AUD

SALE Sold out

Tax included. Shipping calculated at checkout.

BAR SIZE 1 1/8"

Product variants

Quantity

DESCRIPTION

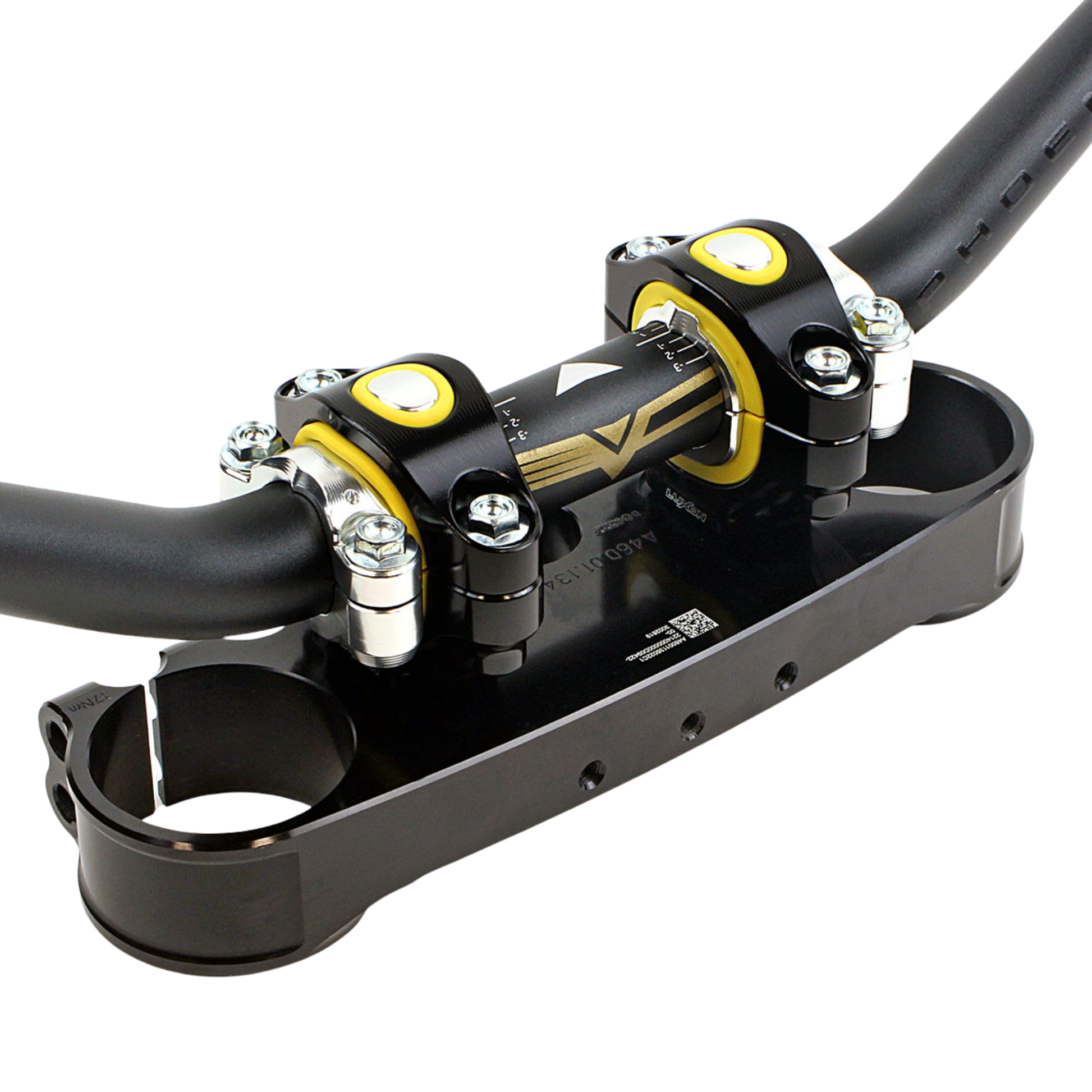

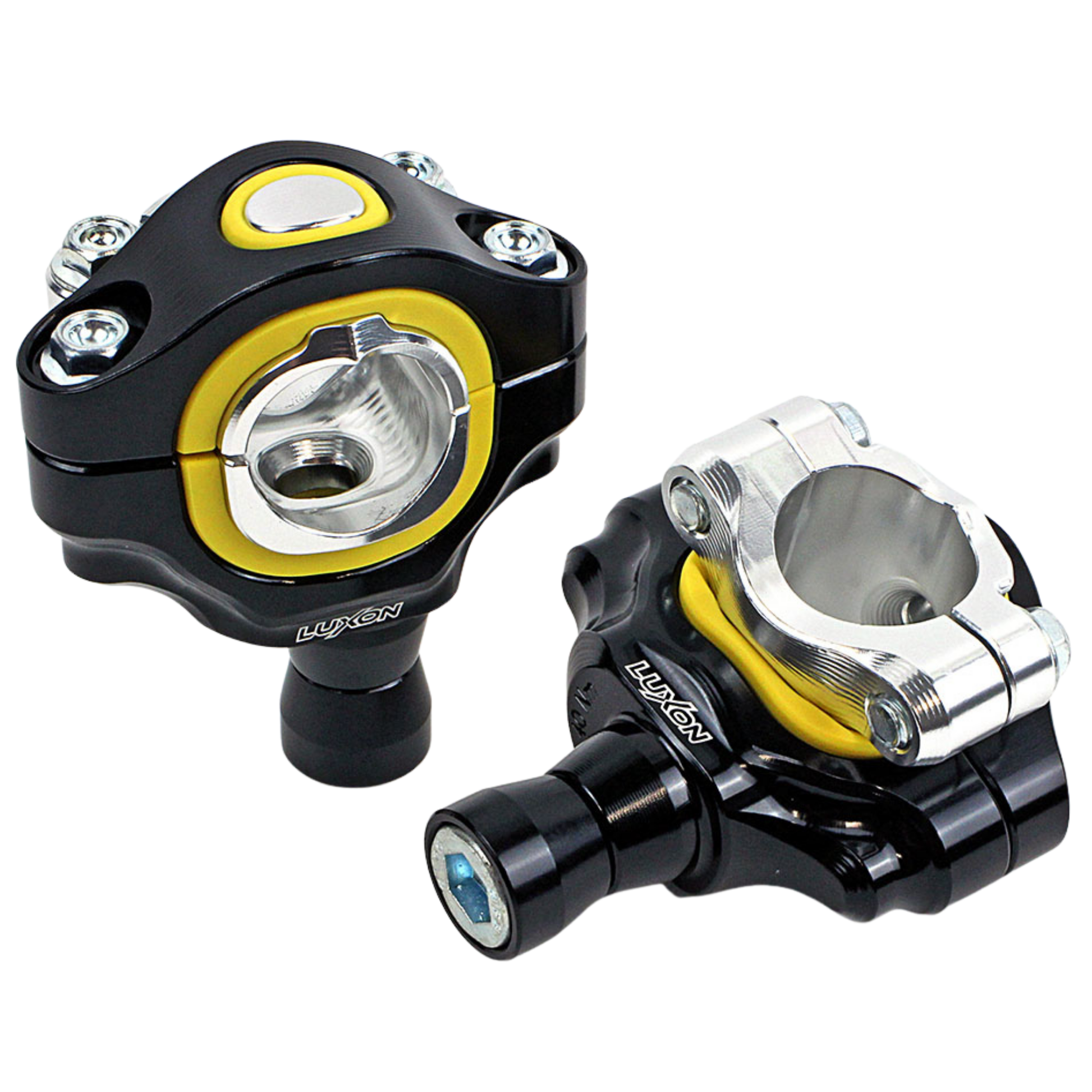

Nexus is the ultimate, comfort oriented, high-performance bar mount. These mounts fully isolate the handlebar from the triple clamp with highly developed elastomer sets, absorbing roughness and vibration from the track or trail, without a loss of steering precision, and eliminating twisting in small crashes and tip-overs.

This mount is a must for off-road and enduro, but also works great for motocross, vet riders, and riders with hand and wrist injuries. The unique, patent pending design, is much lighter, more versatile, simpler, and less expensive than competing products. Three bushing sets (soft, medium, and firm) are included to tune the feel.

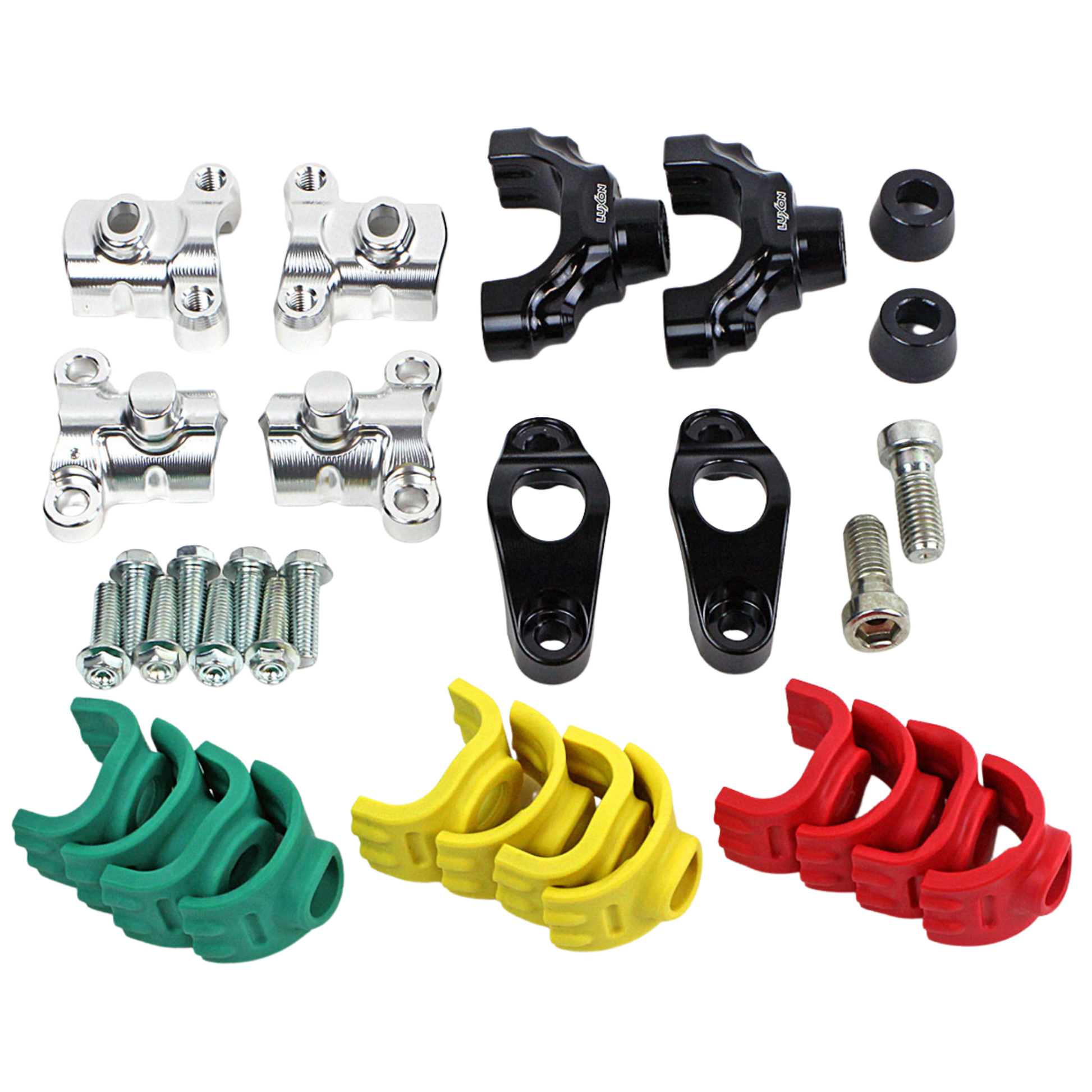

Kit Includes:

Rubber bushings
Bar clamps
Bases
Caps
High-strength steel mount and pinch bolts
Cones
Anti-seize
Instruction manual.

Luxon patent pending Nexus bar mounts are 25% lighter and nearly 20% less expensive than the comparable XC Gear Mako360 bar mount, but have increased steering precision and mounting versatility. When compared to a Flexx handlebar setup, the Nexus bar mounts save nearly two pounds (832 g) at 11% lower cost (solid bar mounts with Flexx bars vs. Nexus bar mounts with Pro Taper Evo bars).

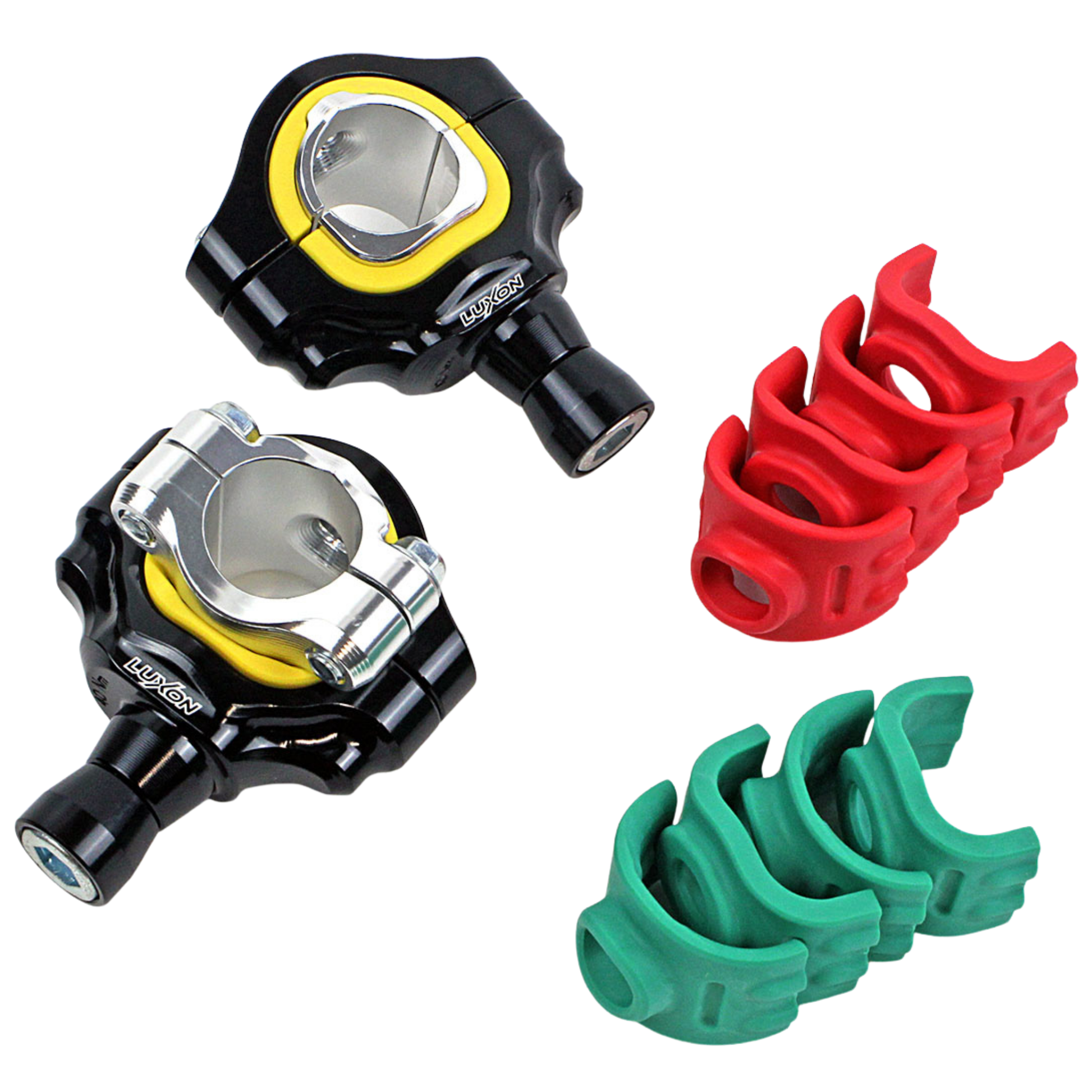

Three different hardness levels of bushings are included at no additional cost. Bushing hardness is a compromise between comfort (soft) and steering precision (firm). Like all rubber bushings, these are wear items and will eventually break down and need replacing. Softer bushings will need to be replaced more often than harder bushings and are more susceptible to crash damage. Replacement bushings are available here.

BAR SIZE:

The Nexus bar mounts fit standard 1 1/8" handlebars only (the most common size). Sorry, Luxon do not offer the Nexus bar mounts in the FB36 (36 mm) size or the older 7/8" bar size.

BAR POSITION:

Nexus mounts are the stock KTM height of 25mm (bottom of bar to top of triple clamp) and offset (7mm of bar position change when flipping the mounts around). This is the same as the Stark Varg. They are also the stock Triumph height of 30mm (bottom of bar to top of triple clamp, including the 5mm step in the triple clamp), but have slightly less throw front to back (7mm vs. 9mm with the stock Triumph).

SPECIFICATIONS

WEIGHT 584 g, 1.29 lbs
STOCK WEIGHT (2023+ KTM MODEL) 436 g, 0.96 lbs
STOCK WEIGHT (2024+ TRIUMPH MODEL) 390 g, 0.86 lbs

INSTALLATION INSTRUCTIONS

VIEW INSTALLATION INSTRUCTIONS HERE

BIKE FITMENT

These mounts fit stock triple clamps with the KTM rubber cone interface, which includes many KTM, Husqvarna, GasGas, Triumph, and Stark Varg models, and all Luxon Gen2 triple clamps. Luxon mounts fit most bikes without issue, but in some cases, you may need to trim plastic brackets or relocate hour meters or accessories to allow clearance in the extreme mounting positions. Always check for full clearance after installation and before riding.

Most standard bar pads will fit with some trimming around the bar mount area. A Dremel tool with a sanding drum makes this easy, but a razor blade can be used as well.

An alignment tool is available here to ease installation and ensure correct alignment of the bar mount bases in the triple clamp. This tool is NOT required for installation, but makes the process a little easier and foolproof.

GASGAS

HUSQVARNA

KTM

STARK

VARG EX 2025
VARG MX 2023-2025
VARG MX 1.2 2026

Nexus mount fitment on the Stark Varg requires relocating the phone; the phone cradle will not fit the Nexus bar mounts.

TRIUMPH

TF 250-E 2026
TF 250-X 2024-2026
TF 450-E 2026
TF 450-RC 2025
TF 450-X 2026

The KTM Cone interface is a tapered cone shaped hole on the top and bottom of the triple clamp (a cross section would look like an hour glass). The 2023+ version is identical to the 2016-2022 version, except it includes a counterbore for a flange on the top. Luxon bar mounts fit either version: they do not interface with the flange cutout, but rather the cone surface as it is more accurately machined and stronger. Triumph clamps use the same 2016-2022 KTM cone interface, though it is raised 5mm above the top clamp surface. Stark Varg clamps also use the same 2016-2022 KTM cone interface.

Image Above: The 2023+ KTM Cone interface on a stock clamp

Image Above: The 2016-2022 KTM Cone interface on a stock clamp
