LUXON NEXUS 1 1/8" BAR MOUNTS (FOR LUXON GEN3 TRIPLE CLAMPS & XTRIG CLAMPS)

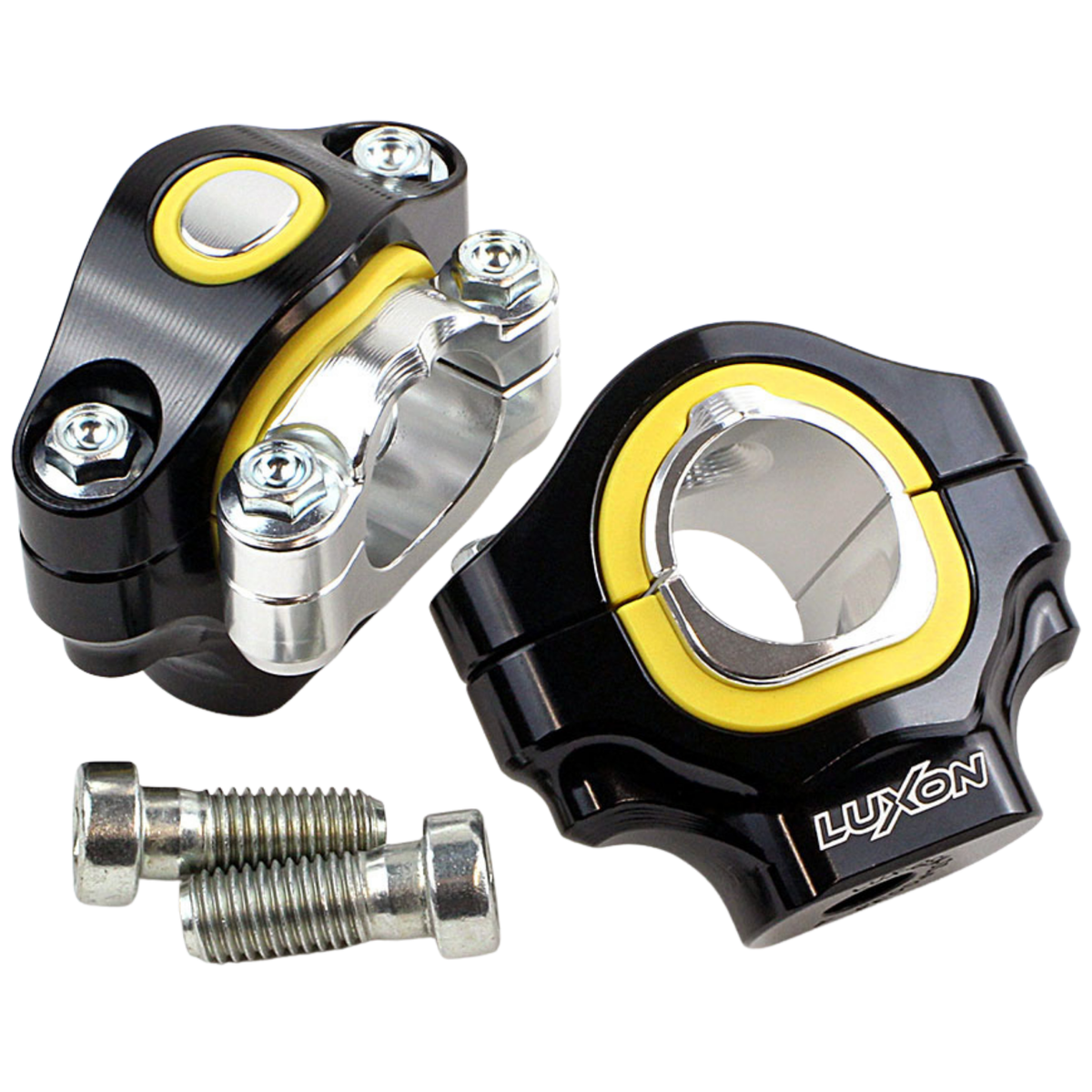

Nexus is the ultimate, comfort oriented, high-performance bar mount. These mounts fully isolate the handlebar from the triple clamp with highly developed elastomer sets, absorbing roughness and vibration from the track or trail, without a loss of steering precision, and eliminating twisting in small crashes and tip-overs.

This mount is a must for off-road and enduro, but also works great for motocross, vet riders, and riders with hand and wrist injuries. The unique, patent pending design, is much lighter, more versatile, simpler, and less expensive than competing products. Three bushing sets (soft, medium, and firm) are included to tune the feel.

These mounts fit Luxon Gen3 and Gen3 Pro triple clamps as well as many Xtrig triple clamps with an M12 interface. These DO NOT fit stock clamps or other aftermarket clamps.

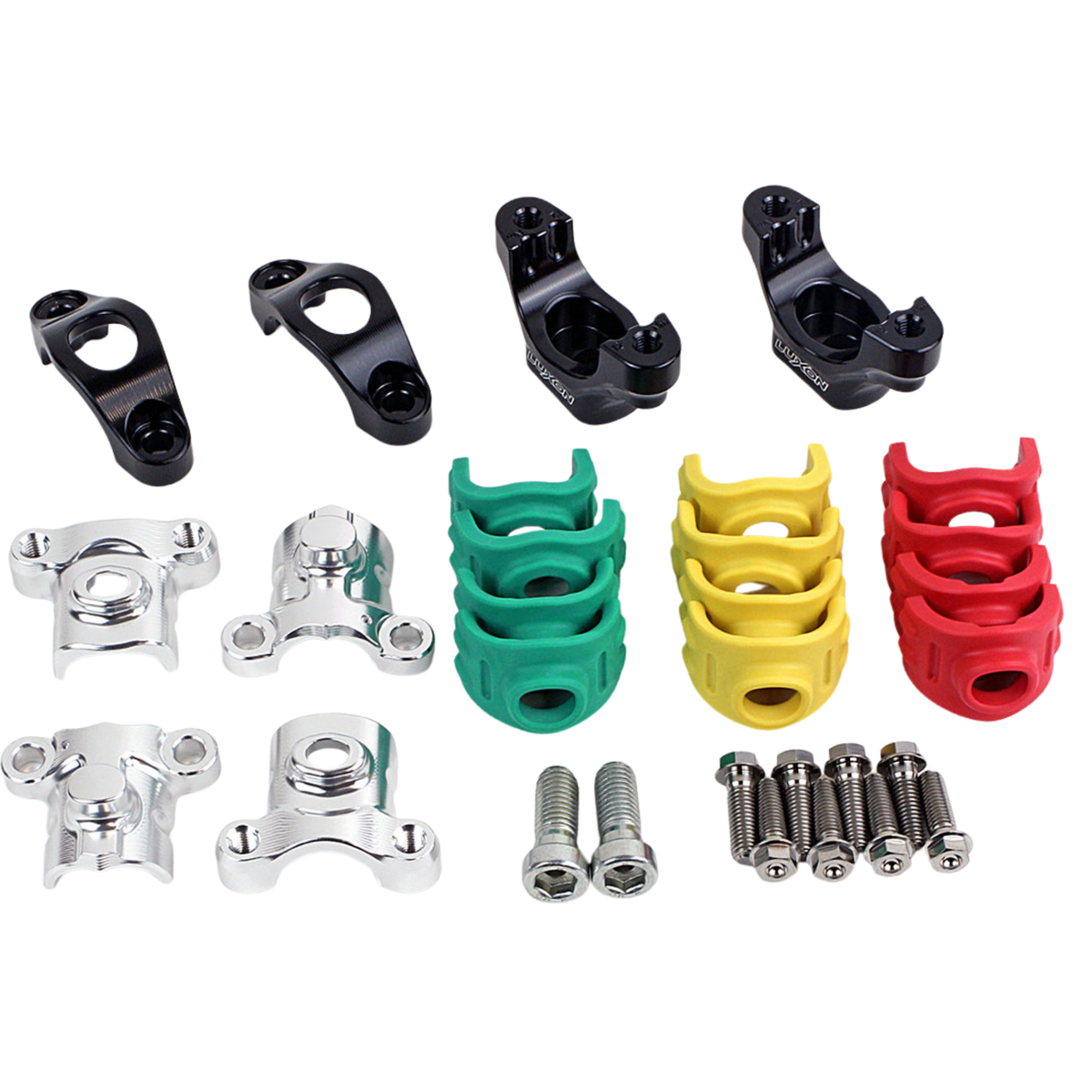

Kit Includes:

• Rubber bushings
• Bar clamps
• Bases
• Caps
• High-strength steel mount and clamp bolts (Titanium clamp bolts are an optional upgrade)
• Anti-seize
• Instruction manual.

Luxon patent pending Nexus bar mounts are 25% lighter and nearly 20% less expensive than the comparable XC Gear Mako360 bar mount, but have increased steering precision and mounting versatility. When compared to a Flexx handlebar setup, the Nexus bar mounts save nearly two pounds (832 g) at 11% lower cost (solid bar mounts with Flexx bars vs. Nexus bar mounts with Pro Taper Evo bars).

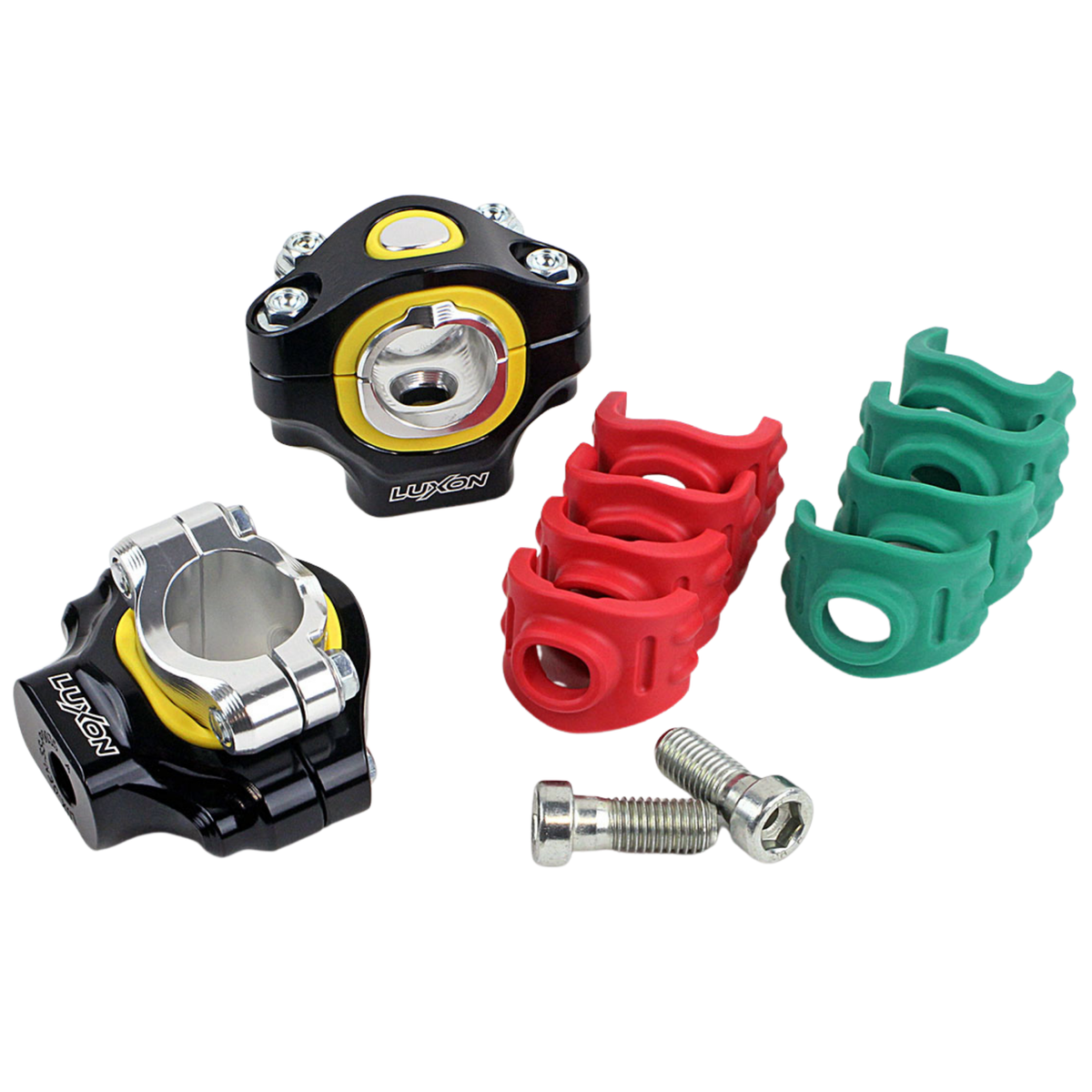

Three different hardness levels of bushings are included at no additional cost. Bushing hardness is a compromise between comfort (soft) and steering precision (firm). Like all rubber bushings, these are wear items and will eventually break down and need replacing. Softer bushings will need to be replaced more often than harder bushings and are more susceptible to crash damage. Replacement bushings are available here.

FITMENT:

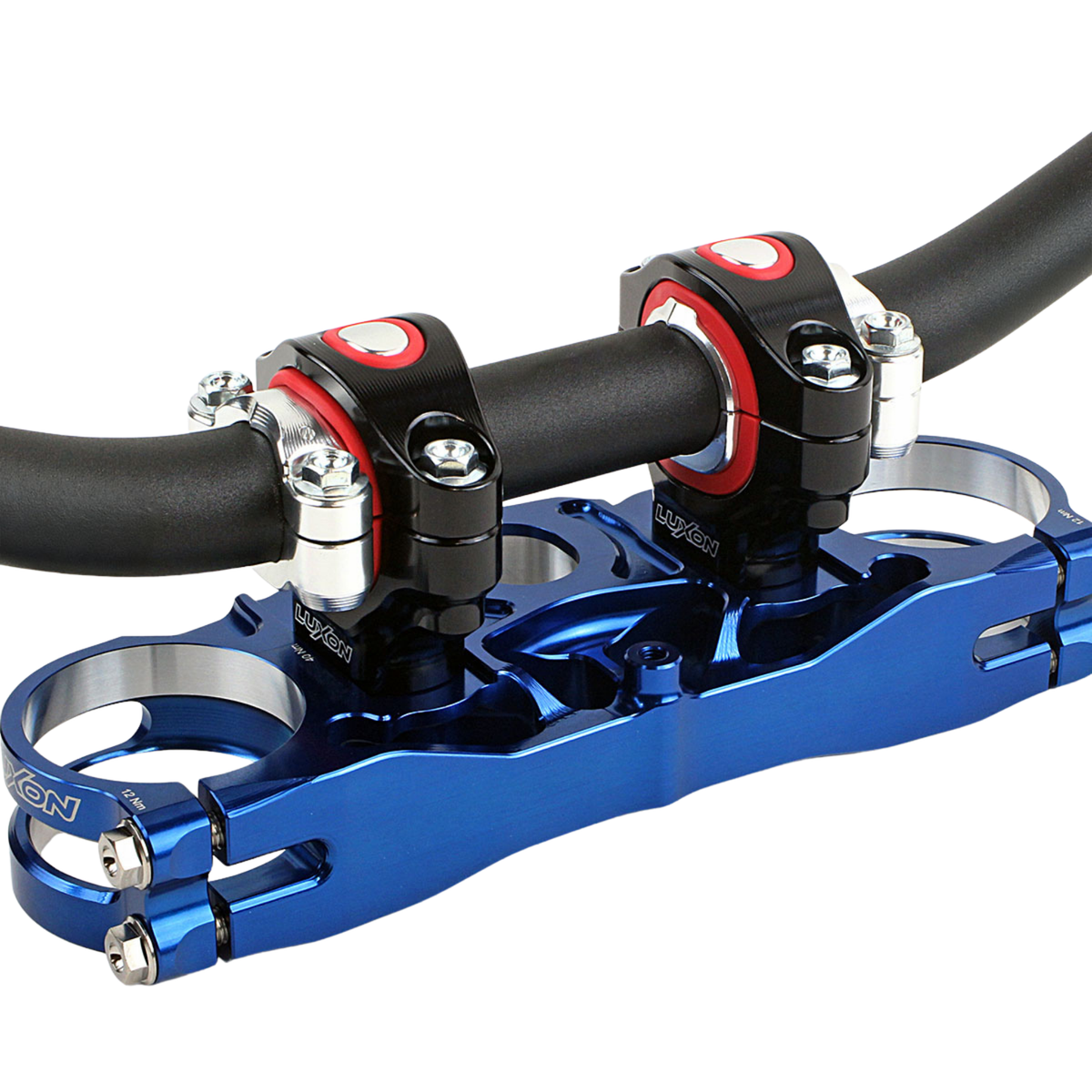

These mounts fit Luxon Gen3, Gen3 Pro, and many Xtrig triple clamps. They do NOT fit stock clamps or other aftermarket clamps. Luxon mounts fit most bikes without issue. In some cases, you may need to trim plastic brackets or relocate hour meters or accessories to allow clearance in the extreme mounting positions (for example: front hole, bars away from the rider). Always check for full clearance after installation and before riding.

Most standard bar pads will fit with some trimming around the bar mount area. A Dremel tool with a sanding drum makes this easy, but a razor blade can be used as well.
Luxon M12 mounts fit Luxon Gen3, Gen3 Pro, and most Xtrig triple clamps. If in doubt, please double check that your triple clamps have an M12 interface as explained above.

BAR SIZE:

The Nexus bar mounts fit standard 1 1/8" handlebars only (the most common size). Sorry, Luxon do not offer the Nexus bar mounts in the FB36 (36 mm) size or the older 7/8" bar size.

BAR POSITION:

Nexus mounts have a height of 26mm (bottom of bar to top of triple clamp) and a 3.75mm offset (7.5mm of bar position change when flipping the mounts around). These dimensions are similar to most stock bar mounts. An optional riser kit is available for those who prefer a taller position (allows for 26mm, 31mm, 36mm, and 41mm height options).

BAR CLAMP BOLTS - available in two options:

• High Strength Steel
• Grade 5 Titanium

NEXUS WEIGHT 555 g, 1.22 lbs
NEXUS PRO WEIGHT 515 g, 1.14 lbs (with Ti bolts)
MAKO 360 WEIGHT 743 g, 1.64 lbs
MAKO 360 SX WEIGHT 624 g, 1.37 lbs
URMOSI 720 SBC WEIGHT 568 g, 1.25 lbs

VIEW INSTALLATION INSTRUCTIONS HERE
