LUXON N2D LINKAGE KNUCKLE KTM SX/SX-F/XC/XC-F 25-27 / HUSQVARNA FC/FX/TC/TX 25-27 / GASGAS EX/MC 25-27

Name: LUXON N2D LINKAGE KNUCKLE KTM SX/SX-F/XC/XC-F 25-27 / HUSQVARNA FC/FX/TC/TX 25-27 / GASGAS EX/MC 25-27
Brand: LUXON
SKU: LUX-KTM-SS-P0047-N2D
Price: 529.95 AUD
Availability: InStock

SKU:LUX-KTM-SS-P0047-N2D

$529.95 AUD

SALE Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

DESCRIPTION
SPECIFICATIONS
BIKE FITMENT
SPECIAL ORDERS
SHIPPING & RETURNS

DESCRIPTION

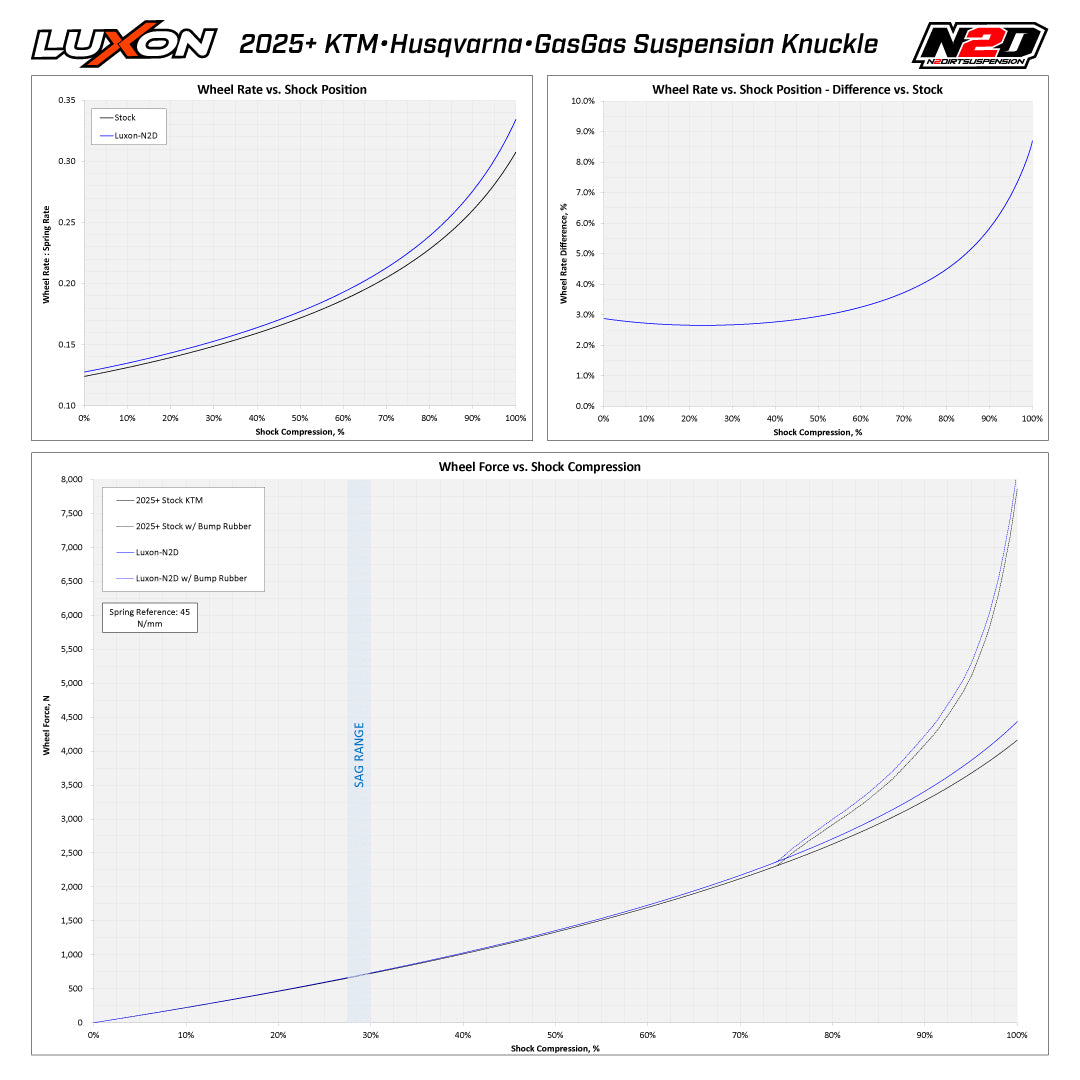

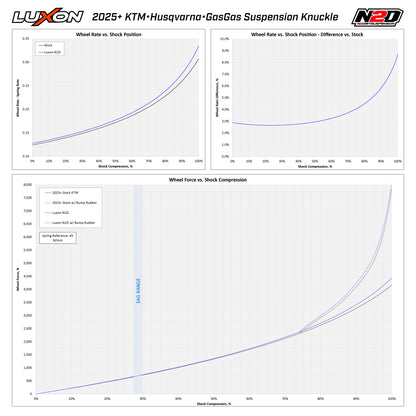

Luxon knuckle maintains stock ride height, increases holdup mid-stroke, and is more progressive near the end of stroke for more bottoming resistance. This allows for a softer setup to provide a more plush ride early in the stroke which better absorbs chatter and small bumps and increases traction. The revised motion ratio still provides better bottoming resistance than stock.

Bolt it on, check your sag and go. Luxon recommend softening up your low and high speed compression and adjusting from there as needed.

KEY FEATURES

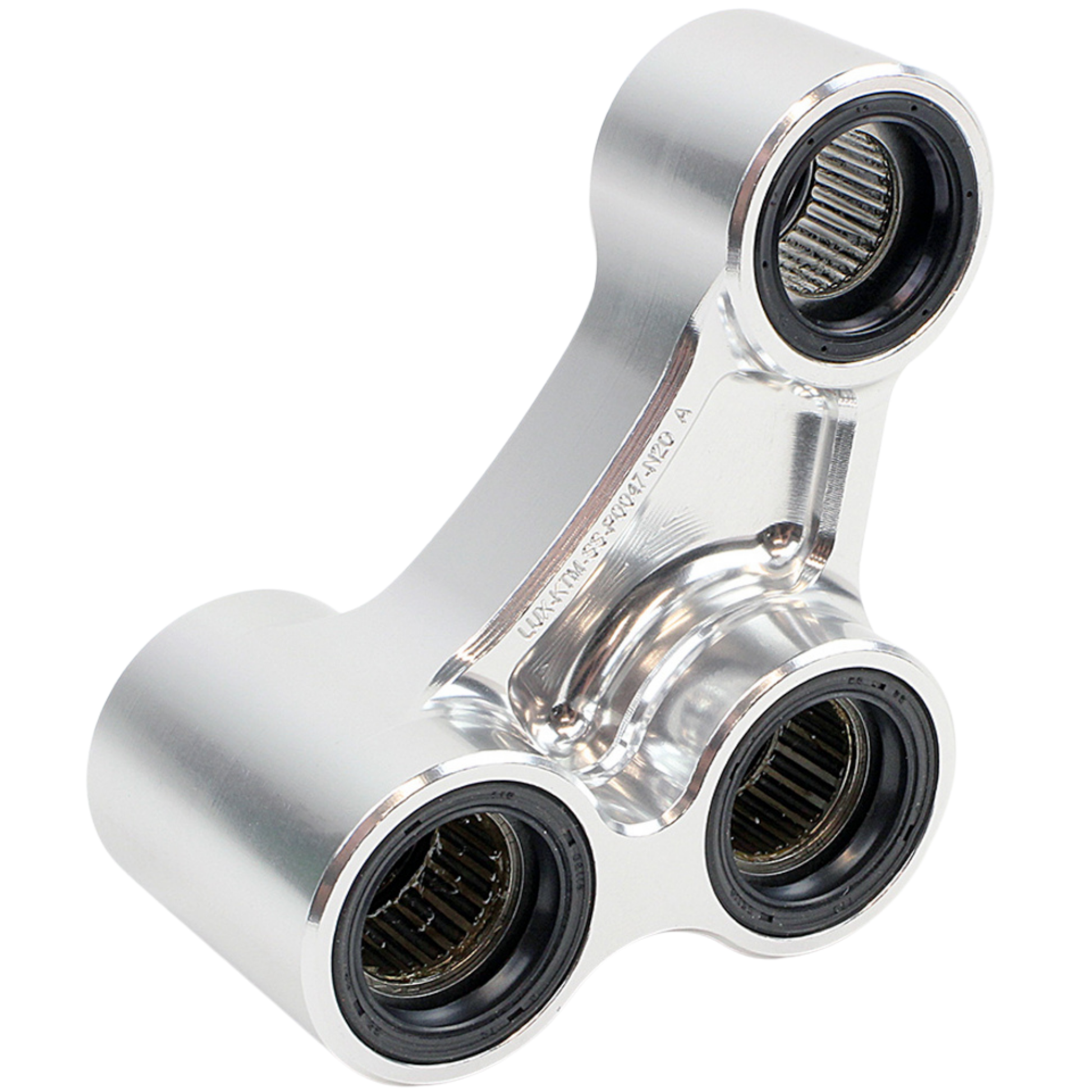

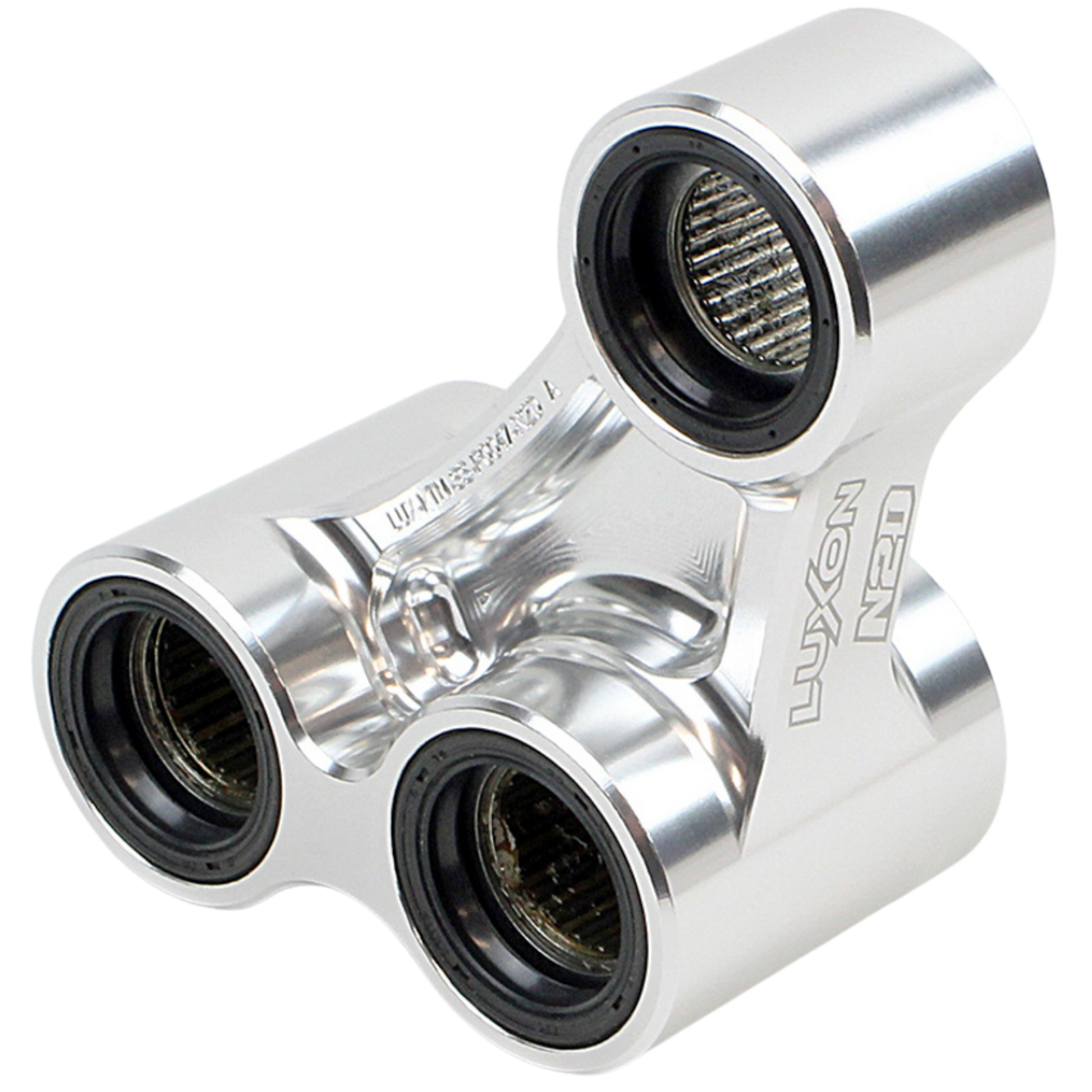

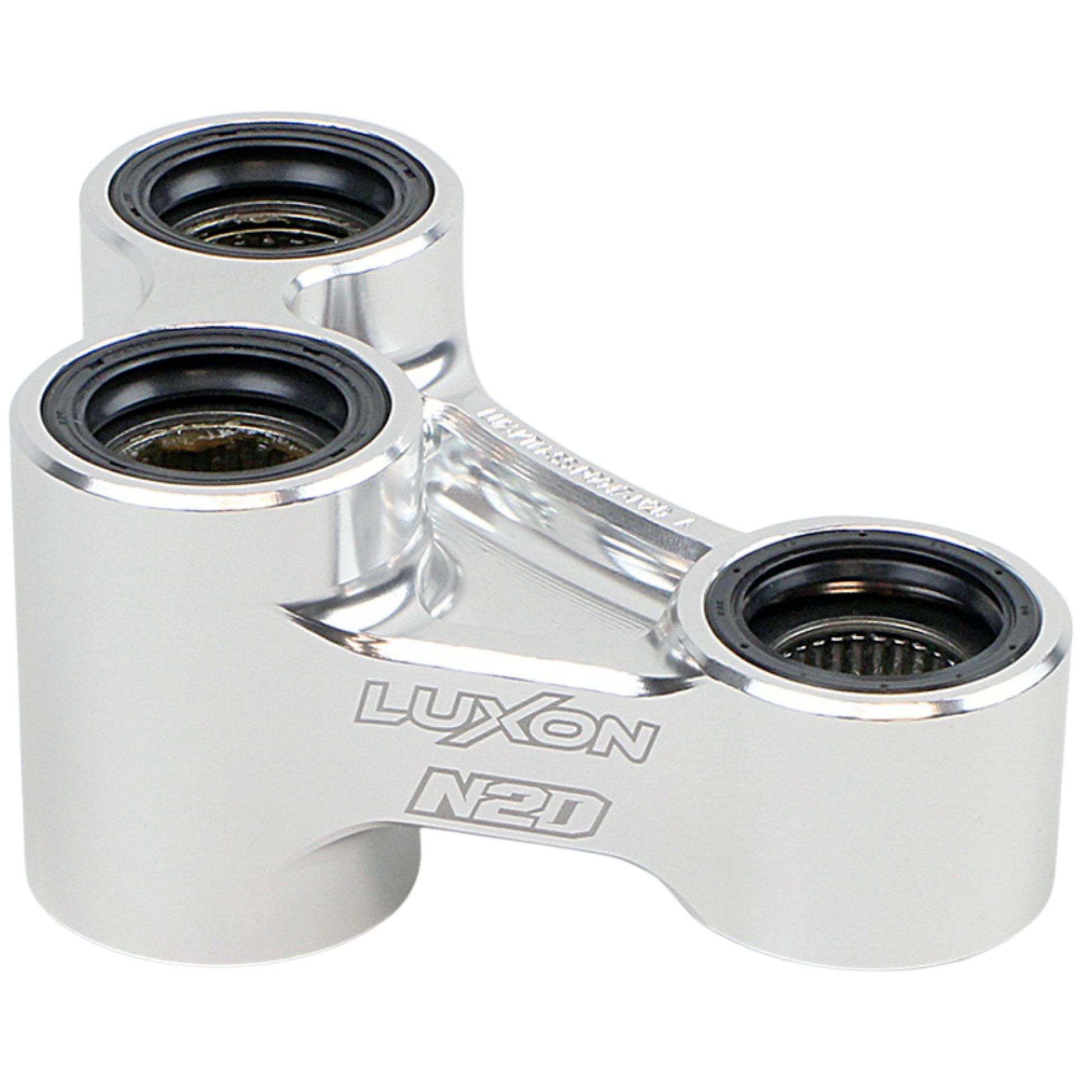

Precision machined from billet aluminium, clear anodised, and laser etched.
Includes OEM bearings and seals pre-installed and fit

Want an outside opinion? Read the MXA test and review of this knuckle here in Luxon review section! (*The review is for the 2024 version, but the 2025-2026 has an identical motion ration, just different bearings, so the performance changes are the same.)

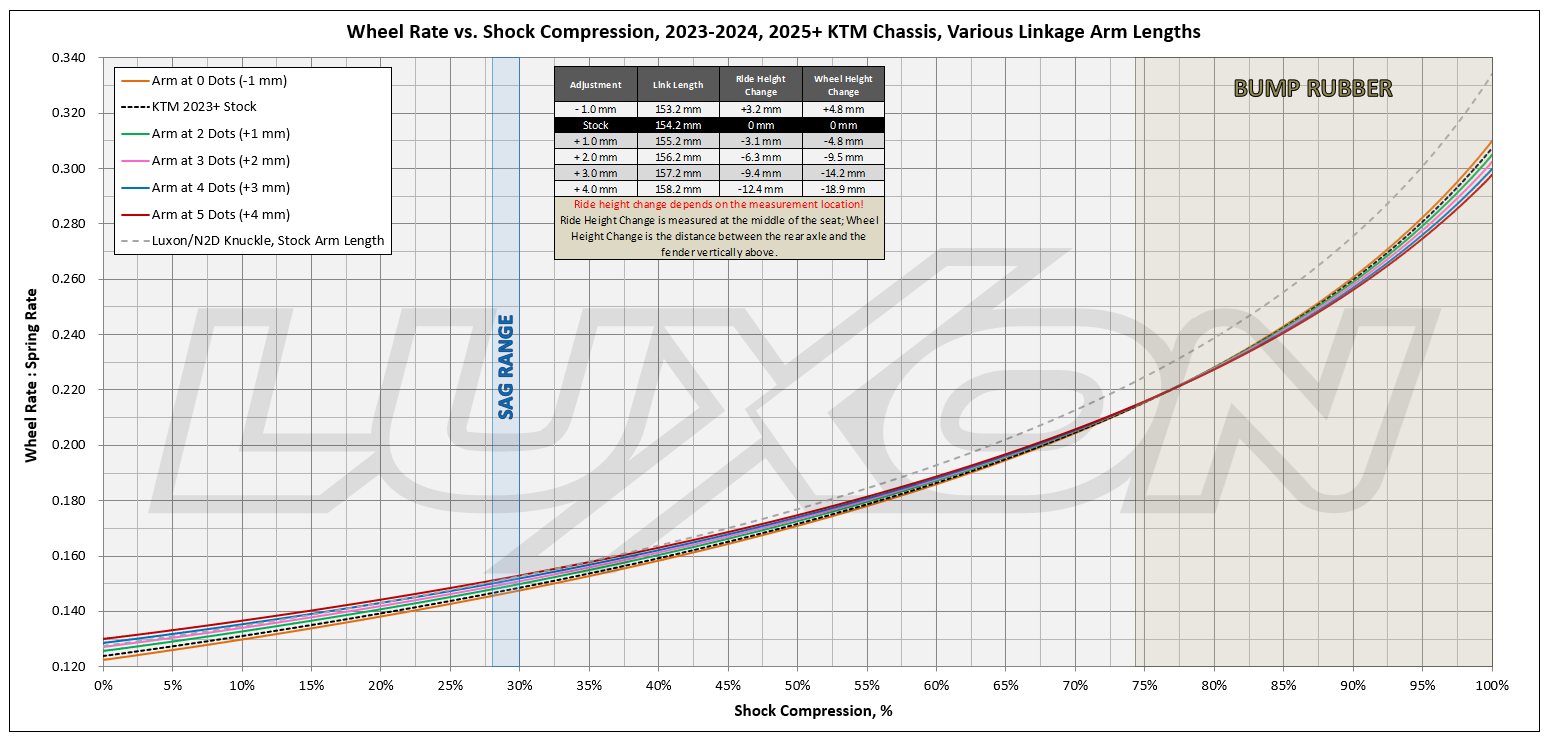

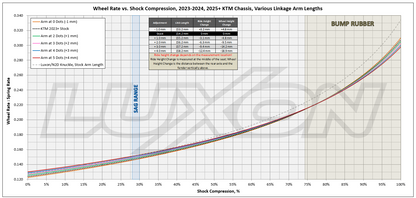

This knuckle is NOT compatible with some lowering links. It is compatible with Luxon adjustable link arm, but heavier weight springs may interfere with the swingarm at the +3mm or +4mm adjustment lengths (all other lengths will work fine). Soft springs may not interfere at all (it's a tight fit at the swingarm and heavy springs are bigger).

SPECIFICATIONS

WEIGHT (WITH BEARINGS AND SEALS) 380 g, 0.84 lbs

BIKE FITMENT

GASGAS

No linkage arm and no spring change required. Re-valve through @n2_dirt always recommended, but not strictly required.

HUSQVARNA

No spring change required. Re-valve through @n2_dirt always recommended, but not strictly required. This knuckle is designed around the KTM/GasGas geometry, so on a "10mm lowered" Husqvarna, it will raise the ride height by about 5.4 mm in the rear. This can be addressed by using Luxon adjustable link arm in the 2mm longer setting (3 dots) to bring the rear end back down.

KTM

No linkage arm and no spring change required. Re-valve through @n2_dirt always recommended, but not strictly required.

SPECIAL ORDERS

In order for us to be able to offer the entire range of some products, we have a special order in process. Once you place your order, we will order your items in from our suppliers. This allows you to have more freedom in choice of colour, style, upgrades etc.

Processing time can vary - some items we will have within a few days, whereas some items are ordered in from the United States of America or Europe, and therefore require an extra few weeks to account for shipping time and in some cases, manufacturing time. You will receive an email confirmation when your order has been placed and you will receive status updates on your order as it progresses.

If you have any questions or concerns or would like a rough ETA on order delivery times or stock levels, please get in touch with our customer service team and they will be able to assist you: support@motohouse.com.au or (07) 5681 1505.

ITEMS FROM USA

We place stock orders from the USA every week - this includes items from Luxon. We try our best to ensure all items are in stock but if not - please allow an extra 1-2 weeks for your order to be processed.

SHIPPING & RETURNS

SHIPPING

We offer free standard shipping on all items (excluding bulky items) over $20 within Australia and over $50 to New Zealand. All other internaitonal destinations will be invoiced separately. View our shipping policy here.
